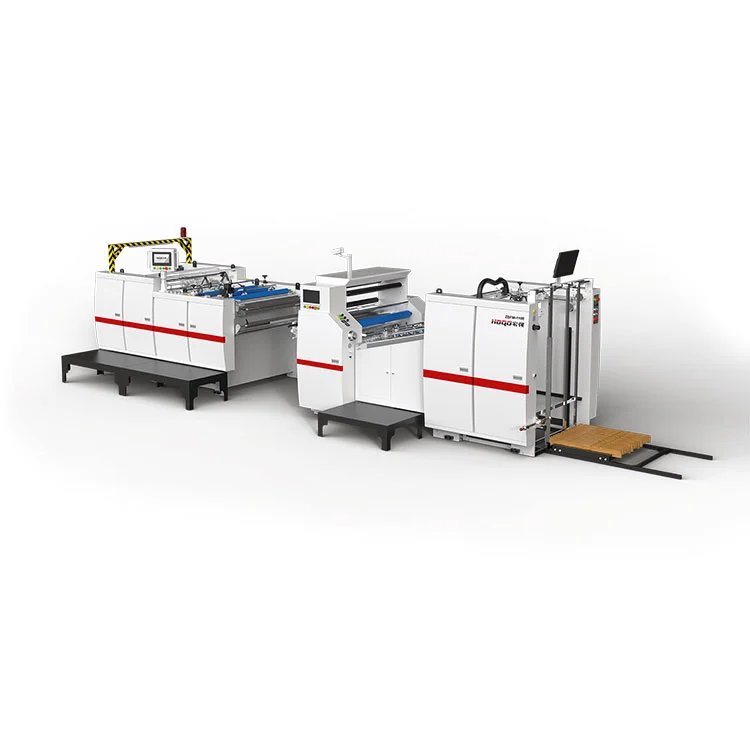

Scelerisque Film Pre-coating Laminating Machina

In studio productionis efficientiae et signa environmental hodie processus traditionalis efficiens ut gluten, ligamen exsiccans factus est bottleneck. Hongqiang sicut Sinarum pellicularum technologiae innovator, altam qualitatem ZDFM-E Thermal film Pre-cotingens Machina Laminating specialiter destinatur ad usum pre-coated glue libero-film et optimized design. Complexum conglutinationem et siccationem systematum deserit et solum accurato calore et pressione obduci potest. Inde simpliciorem structuram suam facit, consummatio energiae inferioris (totalis potentiae tantum 30KW), celeritas stabilior (20-100 m/min), apta calidis et calidis pressionibus, missionum productioni celerior.

Mitte Inquisitionem

depictio producti

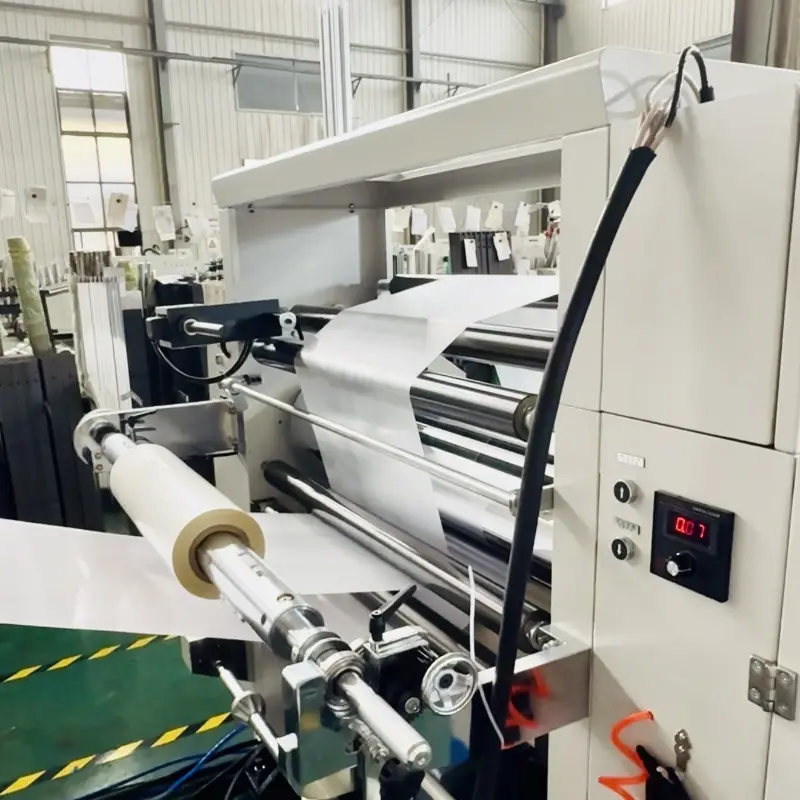

Scelerisque pelliculae ZDFM‑E machinae laminating e Hongqiang cinematographico usui destinata est cum cinematographicis (glue gratis) adhibitis, necessitatem eliminatis unitatibus separatis conglutinando et siccando. Hoc simplicior consilium altiore potentiae consumptionem ad circiter 30 kW reducit et celeritates operating adiuvat ab 20 ad 100 m/min, aptas ad celeriores applicationes laminarum thermarum faciens. Machina technologiam electromagneticam calefactionem patentem incorporat, quae temperationem operating circiter quinque minutas attingit et fertur minus 33% minus vigorem quam aliquas systemata conventionales, una cum fabrica ferrea ad stabilitatem structuram consumere. Turpis configuratione potest conferre ad impensas acquisitiones, requisita sustentatio reducta, et operatio stabilis, dum lineamenta ad libitum qualiacumque cinematographica hydrau cinematographica addunt commoditatem. Pro operationibus in cinematographicis cinematographicis positis, hoc instrumentum praebet aditum ad efficientiam et efficaciam aequabilem.

Parameter Product (specification)

Nomen exemplar	*ZDFM-820820E**	*ZDFM-100880E**	*ZDFM-MC 1250E**	*ZDFM-12501450E**	*ZDFM-13501650E**
Max.Paper Sheet Size (W*L)	800mm*820mm	1080*880mm	1080mm* 1250mm	1200mm*1450mm	1300mm*1650mm
Min. Paper Sheet Size (W*L)	220mm* 230mm	350* 280mm	350mm* 280mm	350mm* 280mm	350mm* 280mm
Laminating Speed	15-90m/min (servo moderato)	20-100m/min (servo moderato)	20-100m/min (servo moderato)	20-100m/min (servo moderato)	20-100m/min (servo moderato)
charta Crassitudo	100-550g/㎡	80-550g/㎡	80-550g/㎡	80-550g/㎡	80-550g/㎡
Productio Power	15KW	15KW	15KW	15KW	15KW
Totalis potentiae	35KW	35KW	35KW	35KW	35KW
Aeris copia	1000L/min 0.8Mpa	1000L/min 0.8Mpa	1000L/min 0.8Mpa	1000L/min 0.8Mpa	1000L/min 0.8Mpa
Potentia copia	380V 50Hz / 3P4W	380V 50Hz / 3P4W	380V 50Hz / 3P4W	380V 50Hz / 3P4W	380V 50Hz / 3P4W

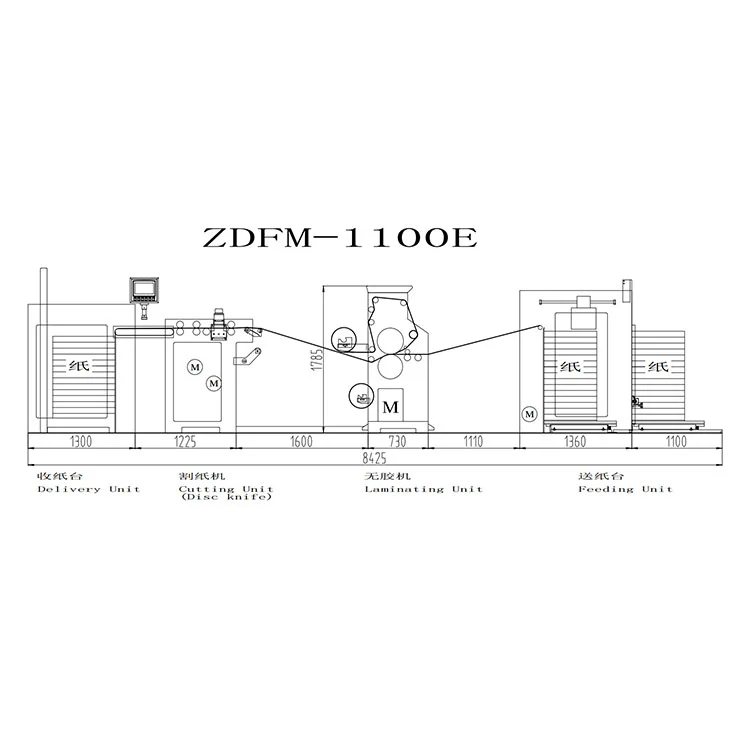

Altiore Dimensiones (L W * H)	7570mm1850mm2000mm	824521502000mm	99052200 1800mm	10900mm2300mm2000mm	1900mm2400mm2000mm
Pondus	≈4500kg	≈5900kg	≈6100kg	≈7500kg	≈8200kg
Overlap Precision	≤+1.5mm	≤+1.5mm	≤+1.5mm	≤+1.5mm	≤+1.5mm
Aqua Base film Crassitudo (communia)	0.8/1.0/1.2/1.5	0.8/1.0/1.2/1.5	0.8/1.0/1.2/1.5	0.8/1.0/1.2/1.5	0.8/1.0/1.2/1.5

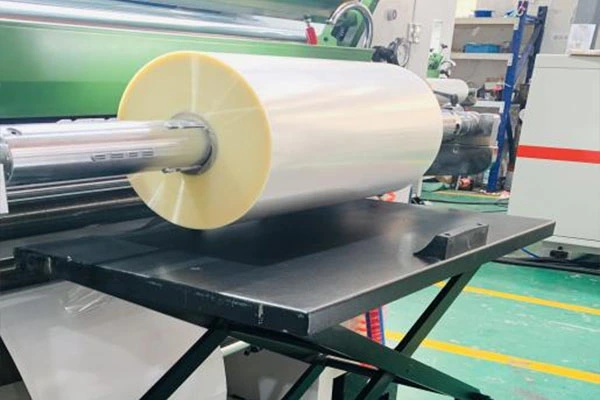

Pre-tunicam gluten Film Crassitudo (communia)	15-35μm	15-35μm	15-35μm	15-35μm	15-35μm
Altitudo Non-desine Pascentium	1100mm	1100mm	1100mm	1100mm	1100mm
Collector Chartarum Height (incl. grabatum)	1250mm	1250mm	1250mm	1250mm	1250mm
Continens	40HQ	40HQ	40HQ	40HQ	40HQ
HS code	8439300000	8439300000	8439300000	8439300000	8439300000
Material Compatibility	OPP, BOPP filius; charta subiecta; rigidum packaging materiae	OPP, BOPP filius; charta subiecta; rigidum packaging materiae	OPP, BOPP filius; charta subiecta; rigidum packaging materiae	OPP, BOPP filius; charta subiecta; rigidum packaging materiae	OPP, BOPP filius; charta subiecta; rigidum packaging materiae

Munus et Features:

1. National Latin Obsequium

Instrumentum mechanicum plena-range cum salute protocols & components certificata per signa Industrial Sinarum Archi-Tech.

2. firma stabilitate

Ferrum mainframe iacta vibrationem liberam, ultra-stabilem operationem efficit etiam sub cyclis gravibus officio, plus quam XX annorum spatium vitae.

3. Subtilitas charta pastio

Servo moderato satietas systematis praestat lenis, jam-liberum charta oneraria cum moderamine automatico.

4. Smart Gratia diei et noctis Technology

Charta noctis agitatae mechanismum attingit ±1.5mm accurationem positionis ad marginem immaculatum adaptans.

5. Breakthrough Calefaciens Ratio (III-Zone Segmented Electro calefactio Rollerus)

Instant fermentum (Reaches C ° C in V minuta - VI, citius quam conventional scutulis).
Maximum Constant Temperature Praecisione (Glumum conservat uniformitatem ad meliorem superficiei effectus laminating usque ad celeritates altas).
Energy Conservatio (Activat secundam zonam pro parvis formats≤720mm, energiae usui a 33% caesim).
Diutius Lifespan（targeted calefactio reduces Flexilis cylindro lapsum, cutting sustentationem costs.

6. Operatio Modos intelligentes

ZDFM-E: Una tactus automationis plenae (automaticae pastio, glutinum applicatio, pressio flare & sublevare, incidere, positis).

ZDFM-S: Calibratio argutus (inputando schedam magnitudinum per HMI, 11 servo unitates sponte accommodant positiones intra 1 minutas).

7. Nulla-Downtime Productivity

Continua lamina mutabilis ratio downtime tollit, boosting output per 100%.

8. Verus-Tempus Processus Imperium

Instructum-in tergo visum vigilantia cum IoT connectivity pro 24/7 remotis operationalibus diagnosticis.

9. Core components de mundi principibus

Systema electrica: Schneider Electric (FR), Omron (JP).

Discus Cultrum Fabrica (Latin)

1.Discus cultroidoneus4 laminae, quod cinematographicum secare potestiuncturam productum locobyrotating pervideo ferro fabrica.

2.Horizontalis sectiopotest melius secare amet sineparcere charta superficies, imperio aseparatum frequency converteracceleritas libere electusut cope variae rerum condiciones.

Molere Rota Cutter Fabrica (Latin)

1.Rota stridor dromonisefficiently teritsuperficies amet in gremiosine vulnere impresso iacuit. Cooperatur cum currentis scutulis, enablingceleri separatio materiae. Maxime idonea fordispensando pressura-sensitivo tenaces (PSA) .

2.In REPENTE scutulisadoptat *auto-exculta charta trahens mechanismqui utiturceleritas differentiatocito confractuset ametseparabis chartam. Pervenit productumnulla cauda amet ac nulla volumine film.
